9" Desktop TouchMonitor for Digital Audio Production and Post Production

  • Large 9 inch TouchMonitor desktop unit with power supply
  • 16 channel AES3id digital I/O via BNC

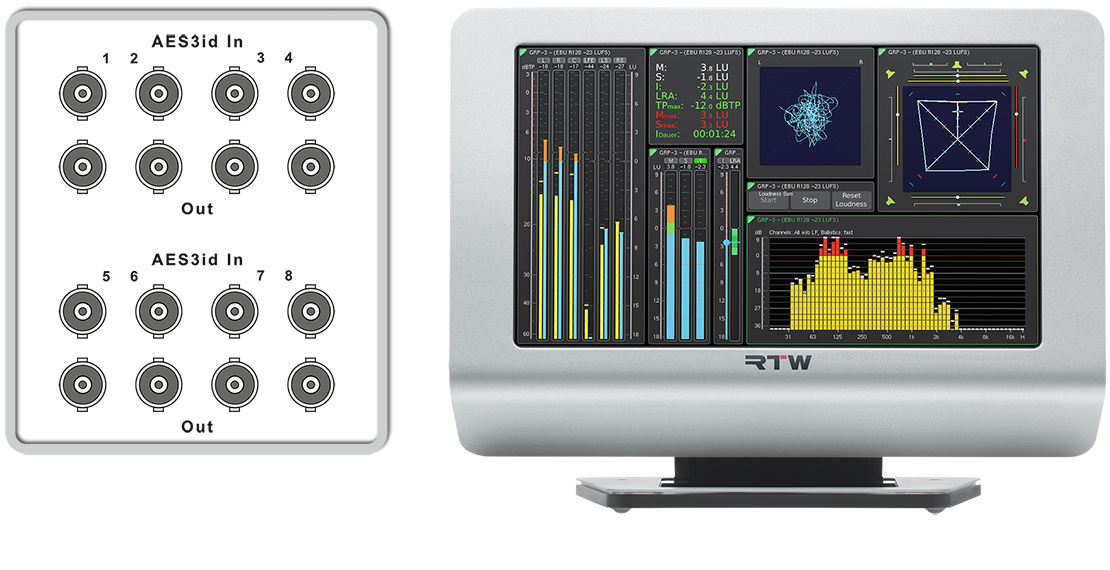

9 inch desktop TouchMonitor with a 16:9 TFT touch screen display.
16 channel digital AES3id-format I/O via BNC.
VGA video signal output, RJ-45 Ethernet connectivity, 2 USB 2.0 ports, a GPIO port and a 12 - 24 V DC interlocking power connector Binder 710 type.
Standarad software. Power supply 1178-R included.

Order No.: TM9-BNC

Basic Software

The unit comes with a basic software package. Beside the control functions, this software is able to process the signals of up to 4 routed channels in a maximum count of 4 groups at a time (up to 4 x Mono, 2 x 2-channel Stereo, 1 x 2-channel Stereo and up to 2 x Mono; no 3.1).

  • 4-channel PPM and TruePeak Meter for 4 x Mono to 2 x Stereo
  • Stereo Correlator for display of phase relationship, AES Status, Gain Reduction, Global Keyboard
  • Software licenses allow flexible configuration according to your needs

Learn more >

Recommended Software Licenses

For multi-channel, surround sound, loudness and more detailed audio analysis, we recommend the use of the following licenses

  • SW20001 for multi-channel operation
  • SW20002 for EBU, ITU, CalmAct Loudness and SPL display
  • SW20004 with Surround Sound Analyzer
  • SW20006 with up to four audio vectorscopes, multistandard PPM/VU moving coil emulation
