TouchMonitor TM9

Setting New Standards: TouchMonitor TM9

9" Desktop TouchMonitor for Post Production, TV Broadcast and Video Editing

Gallery >

The all-new audio metering units of the TouchMonitor range is RTW‘s answer to growing requirements in today‘s production, post-production, and broadcast world. Equipped with high-grade 7“ or 9“ touch screens and an easy-to-use GUI, TouchMonitor enters a new level of professional audio metering in terms of precision, performance, efficiency and flexibility.

  • Measures Analog, AES3, SDI, Dante and Ravenna AoIP depending on selected connector panel
  • Up to 32 audio channels can be monitored
  • Redundant network support with devices equipped with AoIP connectors

Make it Your Own

Whether it comes to software or hardware, TouchMonitor is super flexible.

Our software licensing structure allows you to equip your device with precisely the type of features you are looking for, and with our customizable screen layout you can tailor it to match your exact needs - whether that might be a super simple or a highly advanced setup.



Learn more >

Basic Software and Extensions

The fully scalable, modular software concept allows flexible configuration according to your needs.

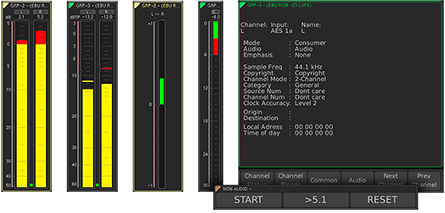

The 4-channel basic software (4 x Mono, 2 x Stereo, 2 x Mono and 1 x Stereo, Peak Hold, Phase Meter, Global Keyboard, Gain-Reduction) can extensively be expanded by activating optional software licences like Multichannel Mode, Loudness, RTA and others.

The current firmware version provides measurements of immersive surround formats. On new devices with appropriate audio interface, these signals can also come from AoIP data streams now.

Features

  • Easy and fast touch screen control with comfortable onscreen help
  • Highly flexible screen layout options with scalable instrument
  • Powerful DSP platform for parallel display of multiple instruments
  • 16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)
  • Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streams
  • Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channels
  • Fully scalable, modular software approach for flexible configuration and easy on-site upgrades
  • Ethernet/LAN, USB, VGA and GPIO ports
  • 9" touch screen 16 : 9 TFT
  • Table-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapter
  • Flush mount versions available (please contact our sales department)
  • Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)
  • Other software modules available as options

to complete comparison of device interfaces >

Tailor Made Models

With TouchMonitor you have endless ways of combining hardware and software. To ease it all up, we have created a number of tailor made models that fit specific applications.

Custom Models

TouchMonitor TM9 comes in a variety of incarnations. We have taylor-made a number of models suited for specific applications, but if none of those fit your needs, you can custom build a TouchMonitor.

Learn more >

Software Options

Every device comes with a comprehensive basic software package including all relevant measuring tools and instruments for the immediate use in many applications.
For specific requirements, the feature set can be expanded with software licenses, each containing a number of features.

Accessories

1167 - Digital Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 4 x XLR-F and 4 x XLR-M (digital inputs and outputs)

1186 - Analog Snake Cable 4 m

Snake cable 4 meter, distributes 25p-D-Sub-M to 8 x XLR-F (analog inputs)

1178-R - Wide Range Power Supply

Wide range 100 - 240 V AC/24 V DC 2.71 A, table-top power supply with corresponding power cable for different power supply systems

Downloads

Further downloads (brochures, manuals & software) can be found on the TM9 download page.
