TouchControl 5
Preset Collection
- Collection of presets for TouchControl 5
- Crafted for AoIP applications
- Guaranteed support for international standards
Use the following collection of presets to explore the features of TouchControl 5. Presets range from simple to advanced, stereo to Atmos, LKFS to LUFS and much more.
If you have no audio at hand, you can enable Demo Mode to play back the built-in 7.1.4 sound track, which will play on channels 1 - 12.
How to enable Demo Mode on TouchControl 5, TouchMonitor 5 and TMxCore.
Working with Presets.
7.1.4 Leveling
Faders can work with audio channels independent of Metering and Monitoring and can be applied to any audio channel in your audio network.
7.1.4 Metering
Metering with PPM for 7.1.4 plus two additional stereo inputs.
Dual Loudness numbers as well as an LRA and Moving Coil.
Stereo Monitoring
Monitor Control for a Stereo speaker setup with SPL, PPM, Correlator, RTA, Vectorscope and Loudness metering.
Buttons for output selection, phones out, Mute, Dim, and Loudness control.
9.1.4 Monitoring & Metering
Monitoring for 9.1.4 Atmos.
The preset has 3 inputs and two outputs, and includes metering with the Magic LRA.

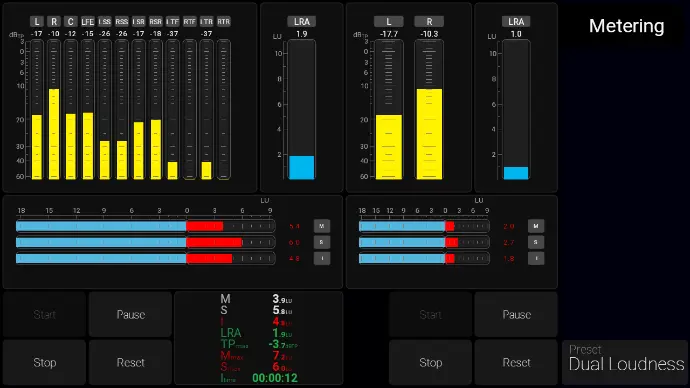

Dual Loudness
Metering of a 7.1.4 and a stereo signal.
The two metering sections are independent and can measure audio channels from anywhere in your audio network.
Stereo with Loudness
The metering page of a monitor control stereo setup, showing PPM, VU and Loudness numbers as well as LRA.

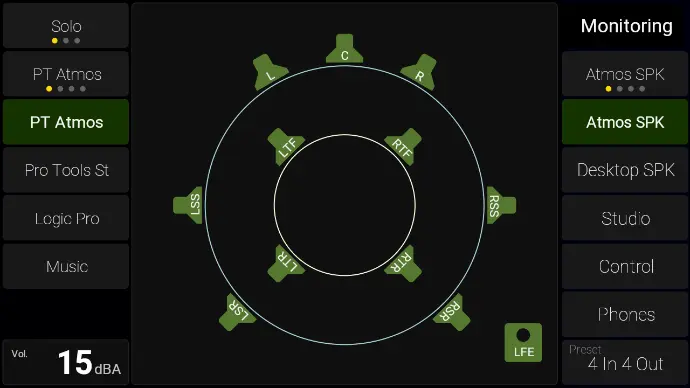

4 Ins & 4 Outs
With version 1.1. we have upped the IO game, so that you can now have 4 inputs and 4 outputs.
The preset demonstrates how you can set up monitoring for 7.1.4 + stereo + stereo + stereo.
CALM Compliant Loudness
Meter setup to measure according to the CALM act (US, -24 LKFS).

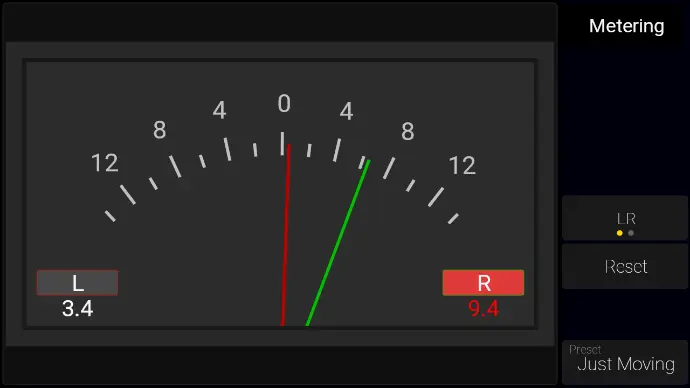

Just a Moving Coil
A large needle instrument that uses the BR llb ext scale. You can switch between LR and MS.
