Surround Sound Analyzer - Example 2

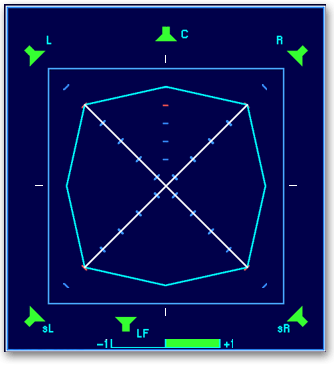

Applied signal:
Identical sine wave with the same level in the channels L, R, sL (LS), sR (RS)
The level is set to the reference monitoring sound pressure level (red marks). Because of an applied mono signal evenly spread to all four channels with the same level the connecting lines of the total program volume display (TVI) between the four channel pairs each show a distinct roof. The correlation level here is +1. This level also can be read off the white mark of the phantom source indicators (PSI) which is centered exactly between the channels of each pair and the minimum of width.
