Surround Sound Analyzer - Example 1

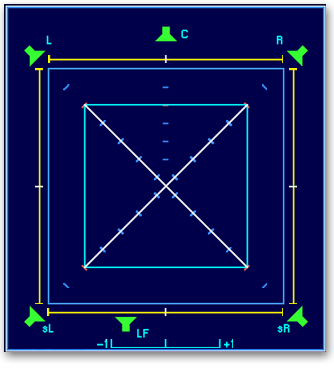

Applied signal:
Incoherent noise with the same level in the channels L, R, sL (LS), sR (RS)
The level is set to the reference monitoring sound pressure level (red marks). The unbroken connecting lines of the total program volue display (TVI) between the four channel pairs each show the correlation level 0. This level also can be read off the yellowness and the width of the moving bars of the phantom source indicators (PSI).
The positions of the phantom sound sources (white mark of the PSI displays) are centered between each channel pair, the spreading of the lines indicates the maximum width of each phantom sound source.
